Configuring OAuth2 authentication

  • Updated
Follow

Starting with version 12.11, the REST API in OTbase Discovery also supports OAuth2 authentication. For an overview of this authentication method, please check this Microsoft documentation: https://learn.microsoft.com/en-us/azure/active-directory/develop/v2-protocols.

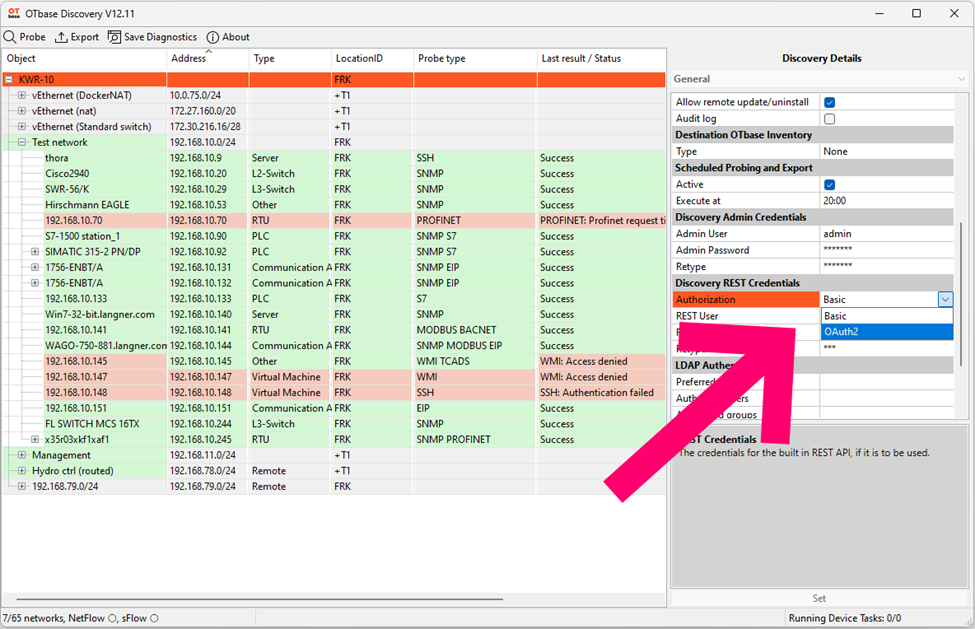

In the OTbase Discovery configuration client, select the node entry in the left pane and then, in the right pane, select “OAuth2” as the authentication method for the REST API.

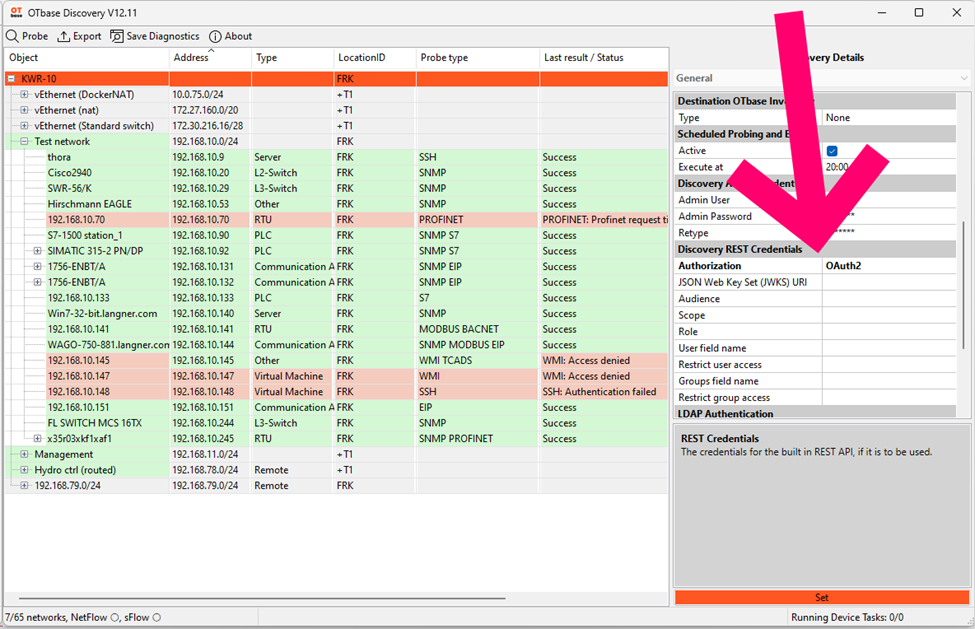

In the fields that are exposed after you have selected “OAuth2”, you can now set the parameters for your OAuth authentication.

JWKS URI

The JSON Web Key Set (JWKS) is a set of keys containing the public keys used to verify any JSON Web Token (JWT) issued by the Authorization Server.

For Azure AD B2C:

Authorization scope must be "[CLIENT_ID]/[SCOPE]" or access token signature will be invalid (SCOPE can be ".default")


Get the Metadata URI from the App/Overview/Endpoints/OpenID Connect-Metadata Document. Example: https://login.microsoftonline.com/[tenant GUID]/v2.0/.well-known/openid-configuration. Calling this URI will give you a JSON document containing a "jwks_uri" field. The assigned URI is the one to use. Example: https://login.microsoftonline.com/[tenant GUID]/discovery/v2.0/keys. To verify this URI: Calling this URI will give you a JSON document containing a "keys" array.



Audience

Expected audience (aud) in the JSON Web Token (JWT). The setting depends on the Authorization Server and may not be required.

For Azure AD B2C:
Enter the Application ID (client ID)

Scope

If set, that scope needs to be set in the scope field (scp) of the JSON Web Token (JWT).

For Azure AD B2C:
The scope is not prefixed with "[Application ID (client ID)]/" here.
Leave empty if scope is ".default"

User field name

Field name in the JSON Web Token (JWT) to be used to identify the user.

For Azure AD B2C:

Use "unique_name" or "upn" for example



Restrict Users

If set, limit access to the provided users (identified by the above field in the JSON Web Token (JWT)).

For Azure AD B2C:
The values for "unique_name" or "upn" are in the format [user]@[domain]

Group field name

Field name of the array in the JSON Web Token (JWT) to check for groups.

For Azure AD B2C:
The "groups" field is only present if you enable "groupMembershipClaims" in the manifest

Restrict group access

If set, limit access to the provided groups (identified by the above field in the JSON Web Token (JWT)).

For Azure AD B2C:
The values are OIDs if not customized via "optionalClaims" in the manifest
