Retrieving Hardware Product Data

  • Updated
Follow

The OTbase Inventory API allows you to easily access and retrieve information about all of your hardware products. You can browse through your full catalog or narrow down your search by vendor, model, version, and even hardware type and product lifecycle stage. All of this is made possible through the use of the GET method and the Portable Inventory Data format. With this resource, you'll have all the information you need to make informed decisions about your hardware choices.

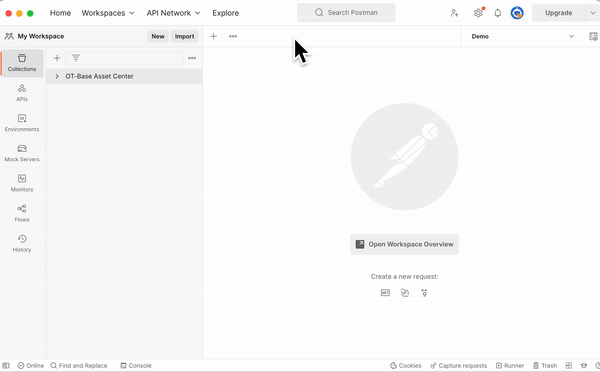

Follow along with our Postman Collection

To access the requests associated with the Hardware endpoint, click on the Hardware product data folder in our Postman collection.




Retrieve the full hardware catalog

Retrieve all hardware products in the hardware product catalog.

Request:

GET ot-base/api/v1/hardware
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware'

response = requests.get(url, auth=auth)

print(response.status_code)
print(response.text)



Retrieve hardware products of a particular vendor

Retrieve all hardware products of a particular vendor.

Note: The vendor name might need to be quoted if it contains special characters.

Request:

GET ot-base/api/v1/hardware/?vendor=vendorName
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# Replace vendorName with a vendor's name between the quotes.
params = {'vendor': 'vendorName'}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)

A wildcard search is supported by using the special character % in the vendor name.

In the request below, results where the vendor name starts with "Rockwell" will be returned. Therefore, both products with the vendor name "Rockwell Software" and "Rockwell Automation/Allen-Bradley" will be returned in the result set

Request:

GET ot-base/api/v1/hardware/?vendor=Rockwell%

Response:

"data": [
{
"vendor": "Rockwell Automation/Allen-Bradley",
...
},
{
"vendor": "Rockwell Software, Inc.",
...
},
...
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# This example shows a vendor name using the wildcard % symbol.
params = {'vendor': 'Rock%'}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)



Retrieve particular hardware models

Retrieve all versions of a hardware product of a particular vendor.

Note: The model filter can only be used for queries that also specify a vendor filter.

Request:

GET ot-base/api/v1/hardware/?vendor=vendorName&model=modelName



import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# You can use the model filter with queries that also specify a vendor.
params = {
  'vendor': 'vendorName',
  'model': 'modelName'
}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)

Retrieve particular hardware model versions

Retrieve product data for a particular hardware product version.

Note: The version filter can only be used for queries that also specify a vendor and model filter. Also, if the vendor name, model name, and version name/number should be quoted if they contain special characters.

Request:

GET ot-base/api/v1/hardware/?vendor=vendorName&model=modelName&version=versionNameOrNumber
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# Retrieves product data for a particular hardware product version using the following params
params = {
  'vendor': 'vendorName',
  'model': 'modelName',
  'version': 'versionNameOrNumber'
}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)



Retrieve specific types of hardware products

Filtering by hardware type can be done by using the type filter. For example, the following query will output only devices of the PLC type.

Request:

GET ot-base/api/v1/hardware/?type=plc
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# Replace enterType with a type that is define in your OTbase Inventory.
params = {'type': 'enterType'}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)

Type filters can be combined in order to search for multiple types in one query. As an example, the following query retrieves both server and desktop hardware products.

Request:

GET ot-base/api/v1/hardware/?type=desktop,server
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

# The type paramater can accept multiple types.
params = {'type': 'enterType1,enterType2'}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)



Retrieve hardware products at a particular location

You can limit the result set to products installed at a particular location by providing the location ID of that location using the parameter locationid.

Request:

GET ot-base/api/v1/hardware/?locationid=usa
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'
params = {'locationid': 'enterLocationID'}

response = requests.get(url, params=params, auth=auth)

print(response.status_code)
print(response.text)

Retrieve hardware products in a particular product lifecycle stage

Filtering by lifecycle stage is accomplished by using the lifecycle filter. It can take the following values active, phaseout, end of life, and discontinued.

In the following example, we search for all Cisco products that either have reached the end of their product life (no new versions coming), or are discontinued (no spares available).

Request:

GET ot-base/api/v1/hardware/?vendor=cisco&lifecycle=end%20of%20life&lifecycle=discontinued
import requests
# Enter your hostname (for example: myserver.com or 127.0.0.1) between the quotes.
hostname = 'enterHostnameOrIP'

# Replace username and password with your username and password credentials.
auth=('username', 'password')

url = 'https://'+hostname+'/ot-base/api/v1/hardware/'

params = {'vendor': 'cisco', 'lifecycle': ['end of life', 'discontinued']}

response = requests.get(url, params=params, auth=('username', 'password'))

print(response.status_code)
print(response.text)
