Worksheets created by OTbase XLSX Writer

OTbase XLSX Writer creates multiple worksheets that contain different types of asset information.

Devices worksheet

The Devices worksheet contains information related to device hardware and connectivity. Note that each line represents a network interface (if present). Therefore, devices with multple network interfaces will appear in multiple lines. Color codes reflect devices types, just like in OTbase Asset Center.

Columns

Device ID
The unique device identifier that allows you to locate the device in OTbase Asset Center

OT System
The OT system that the device is associated with (as assigned in OTbase Asset Center)

Device Name
The name of the device, such as DNS or host name

Description
The description of the device

Type
The device type (PLC, RTU, ...)

Vendor
The hardware vendor

Model
The hardware model name

Serial Number
The serial number of the device

OS/Firmware Version
Version of the operating system or firmware that is running on the device

Interface
Name of the network interface

IP Address
IP address of the network interface

Network
Network name of the network that the interface is attached to

Network Group
Network group that the network is a member of (as assigned in OTbase Asset Center)

VLAN
VLAN ID of the network that the interface is attached to

Connected to
Device ID of the switch or endpoint that the device is connected to

Port
Port number of the switch that the device is connected to

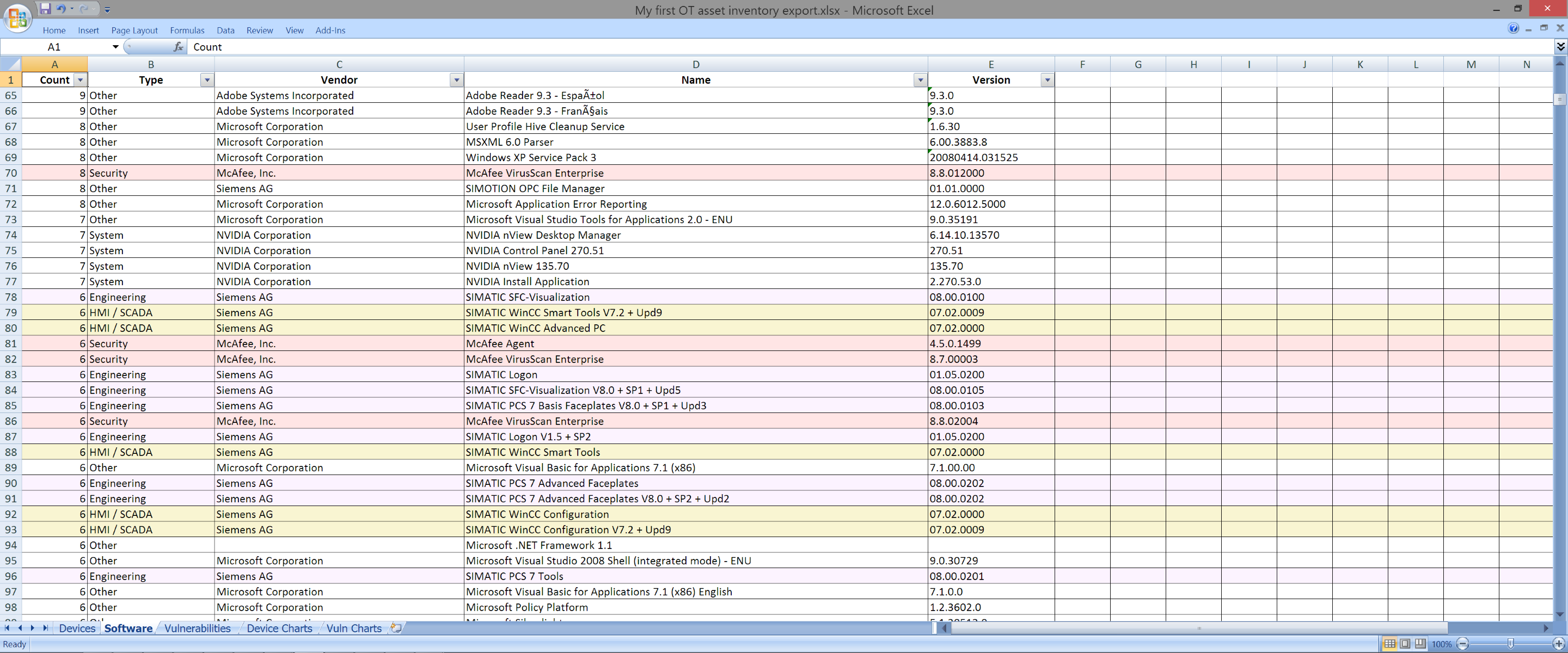

Software worksheet

The software worksheet contains application software that is installed on the devices. Note that operating systems are not listed, as they already appear in the Devices worksheet. Color codes reflect software types, just like in OTbase Asset Center.

Columns

Count
The number of installations for this software product

Type
Software type

Vendor
Software vendor

Name
Name of the software product

Version
Software product version

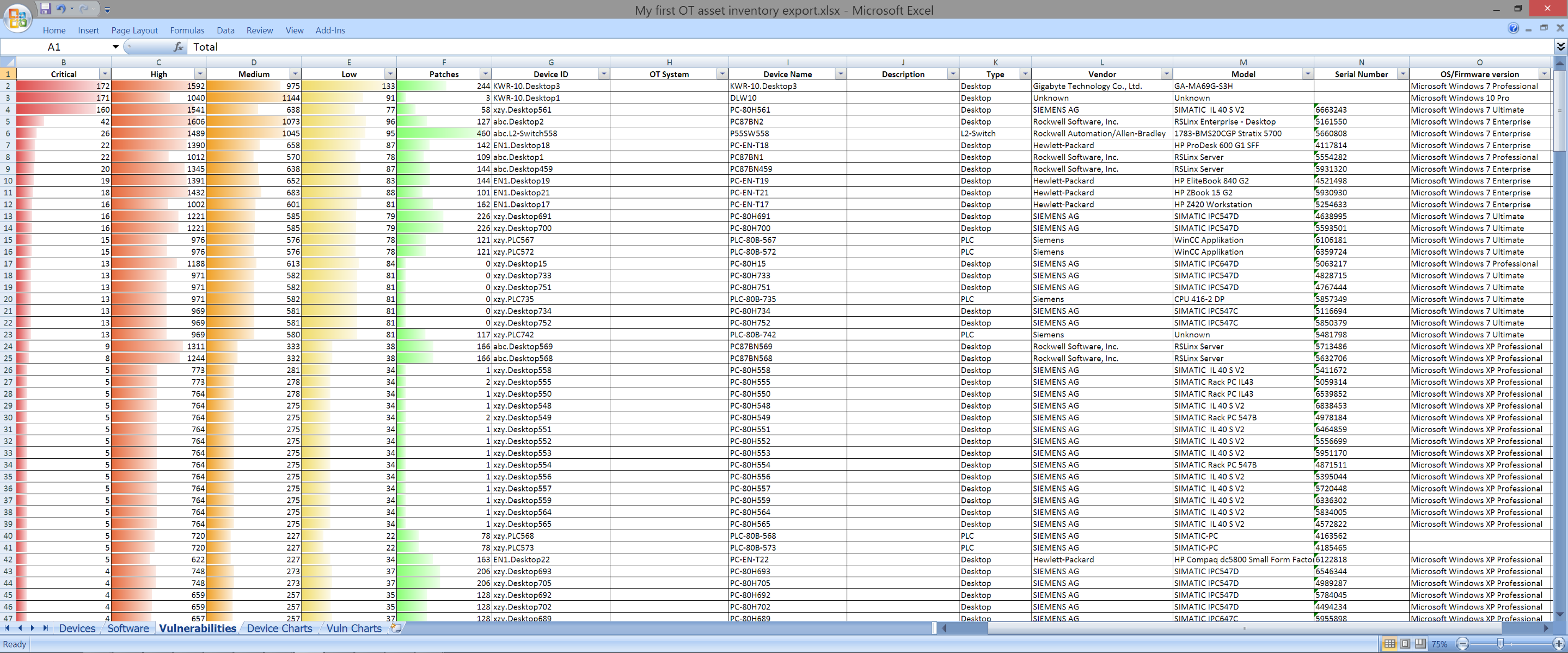

Vulnerabilities worksheet

The vulnerabilities worksheet informs about known vulnerabilities. Vulnerable devices are listed line by line. The default sorting is descending in respect to the number of critical vulnerabilities.

Columns

Total
The total number of known vulnerabilities for the device

Critical
The number of critical vulnerabilities for the device

High
The number of high priority vulnerabilities for the device

Medium
The number of medium priority vulnerabilities for the device

Low
The number of low priority vulnerabilities for the device

Patches
The number of security patches that are installed on the device

Device ID
The unique device ID of the device

OT System
The OT system that the device is associated with (as assigned in OTbase Asset Center)

Device Name
The DNS or host name of the device

Description
The description of the device

Type
The hardware type of the device (PLC, RTU, ...)

Vendor
Vendor name

Model
Hardware model name

Serial Number
The serial number of the device

OS/Firmware version
The operating or firmware version that is installed on the device

Criticality
The criticality of the device, as assigned in OTbase Asset Center. Critical devices are highlighted with orange background.

Device Charts worksheet

The Device Charts worksheet contains several charts that display statistical information about the devices:

• devices broken down by device type
• devices broken down by vendors
• distribution of operating systems.

Note that in the default sizing, charts may not show all items. In this case simply enlarge the chart. Also note that operating systems are not limited to Microsoft products but also include operating systems for other products such as network switches.

Vuln Charts worksheet

The Vuln Charts worksheet contains two charts that display statistical information about the distribution of known vulnerabilities:

• number of vulnerabilities broken down by priority
• number of vulnerable devices broken down by priority.
