Export via OTbase Discovery Proxy

OTbase Network Discovery can export data to any location you would like via usage of the OTbase Discovery proxy, which is included with OTbase Discovery Manager. To get started, please ensure that you have your OTbase Discovery proxy installed and configured to accept incoming data. You can learn to configure the OTbase Discovery Proxy here

Probing and Export

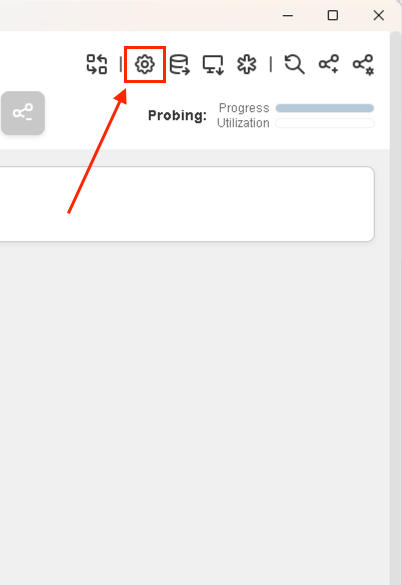

Once you have OTbase Network Discovery open, click the gear icon in the upper right hand side of the window to open the Configuration Dialog.

The Configuration Dialog

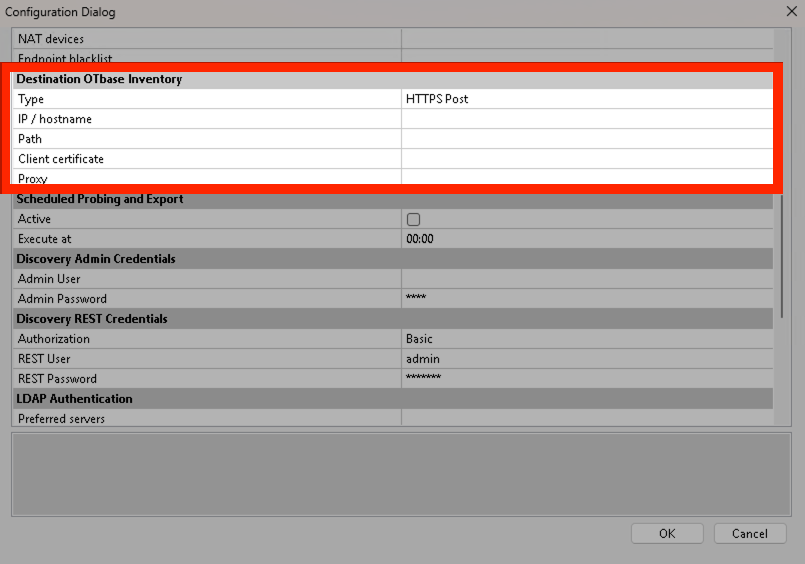

Next, let's turn our focus to the Destination OTbase Inventory section inside of the Configuration dialog that appears. We will use this section to configure OTbase Network Discovery to connect to OTbase Discovery Proxy, that is bundled with OTbase Discovery Manager.  Below are the typical settings you will need to update to get things up and going.

Type

Refers to the connection type that OTbase Network Discovery will use to talk to OTbase Discovery Proxy. Since OTbase Discovery Proxy uses HTTPS to communicate, you will need to select HTTPS

IP/ hostname

The IP/ hostname refers to the accessible address of your OTbase Discovery Manager/Proxy installation. Please ensure that this address is accessible and can be reached by the OTbase Network Discovery.

Path

Normally, the default for the path is blank unless you specified otherwise.

Proxy (optional)

In the case that you are using additional proxy in your network that you need to use, you may enter it here.
