After you have properly installed and configured OT-BASE Asset Discovery, little happens -- except for some entries that you may see spontaneously pop up in the device table. These entries originate from ARP requests by those devices that fly by Asset Discovery and are captured because, why not -- it's a starting point for getting an idea what is in a particular network.
Nevertheless the real action only begins when a probe is initiated explicitly. In a probe, Asset Discovery probes a single network, an individual device, or multiple networks -- depending on how the probe was initiated.

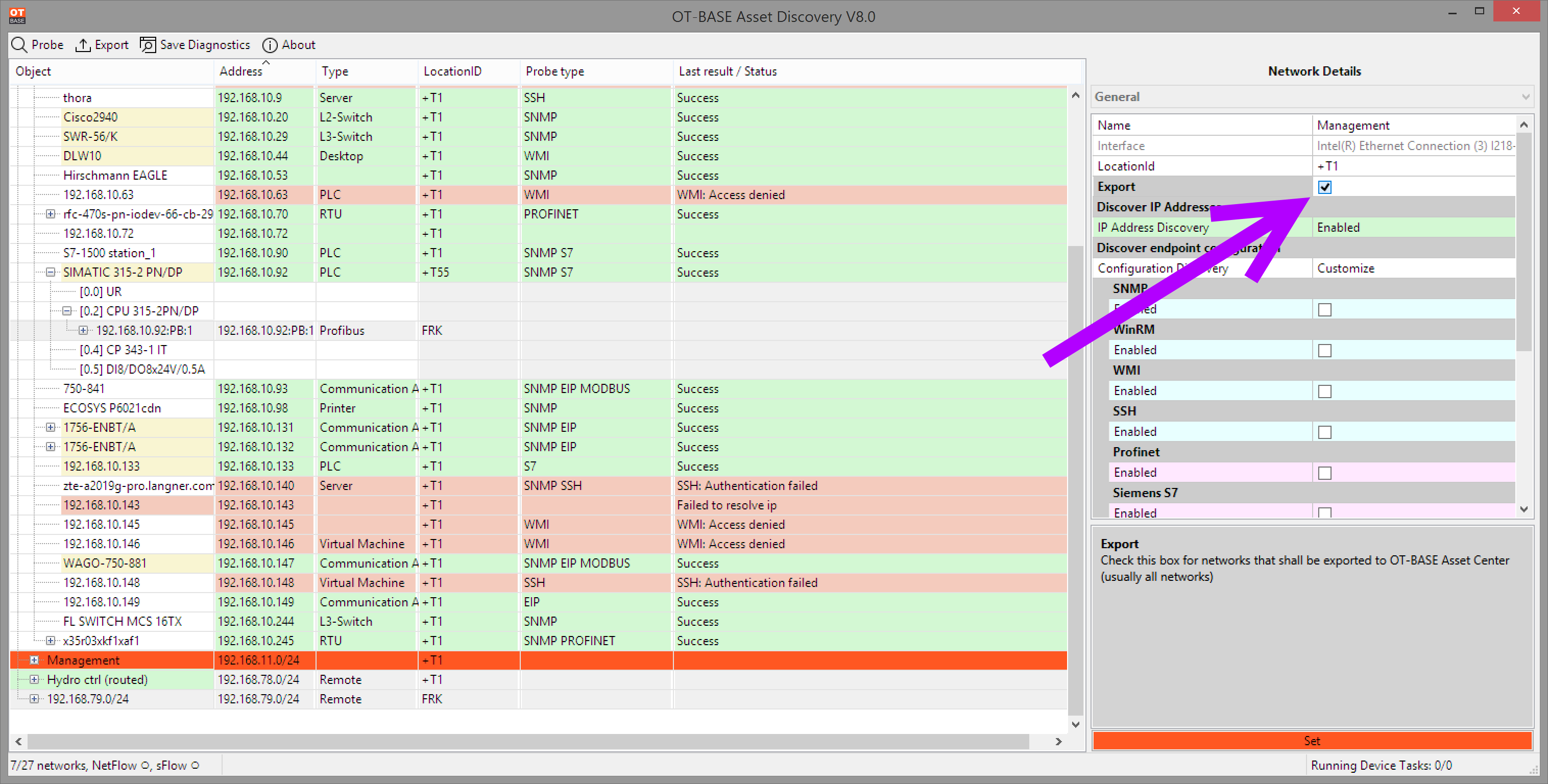

Manual probes are mostly used for verifying that your probing configuration is correct, and for assessing if OT-BASE fits your needs using the evaluation version. A special case is if you use a laptop to gather configuration data from isolated networks that will then be imported into OT-BASE Asset Center; in this case you also issue a manual probe after you have connected your laptop to the target network.
Probing all networks

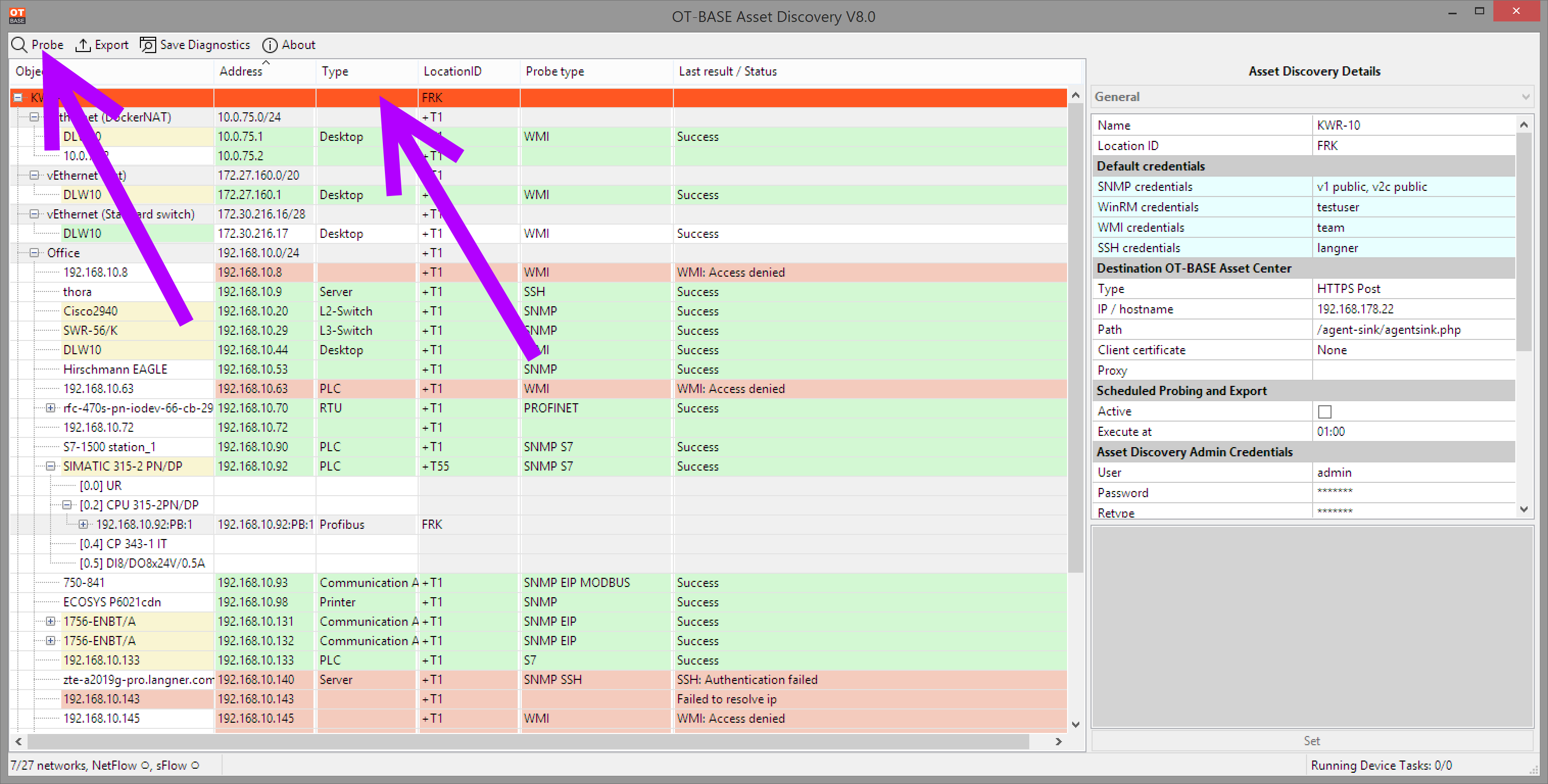

After having configured protocols and credentials, simply click on "Probe" to give it a go. You can follow the probing progress for all networks that you have expanded in the table.
Probing always starts with determining the IP addresses of devices in the given network, if you have ARP, ICMP, or both enabled. If neither of these protocols is enabled, you won't get much out of a probe, except for devices who are already in the device list (because Asset Discovery saw ARP requests from these devices, or because the network had been probed previously with ARP/ICMP on).
Then, for each discovered IP address in the network, further configuration details are probed using the protocols configured for the network or individual device.
You can follow the probing progress as the device table is updated live. Note however that probing large networks can take a while -- especially in routed networks where you have to use ICMP or Ethernet/IP. You can check that the probe is complete when the number of running tasks that is displayed in the status bar at the bottom of the window is zero.
Probing a single network

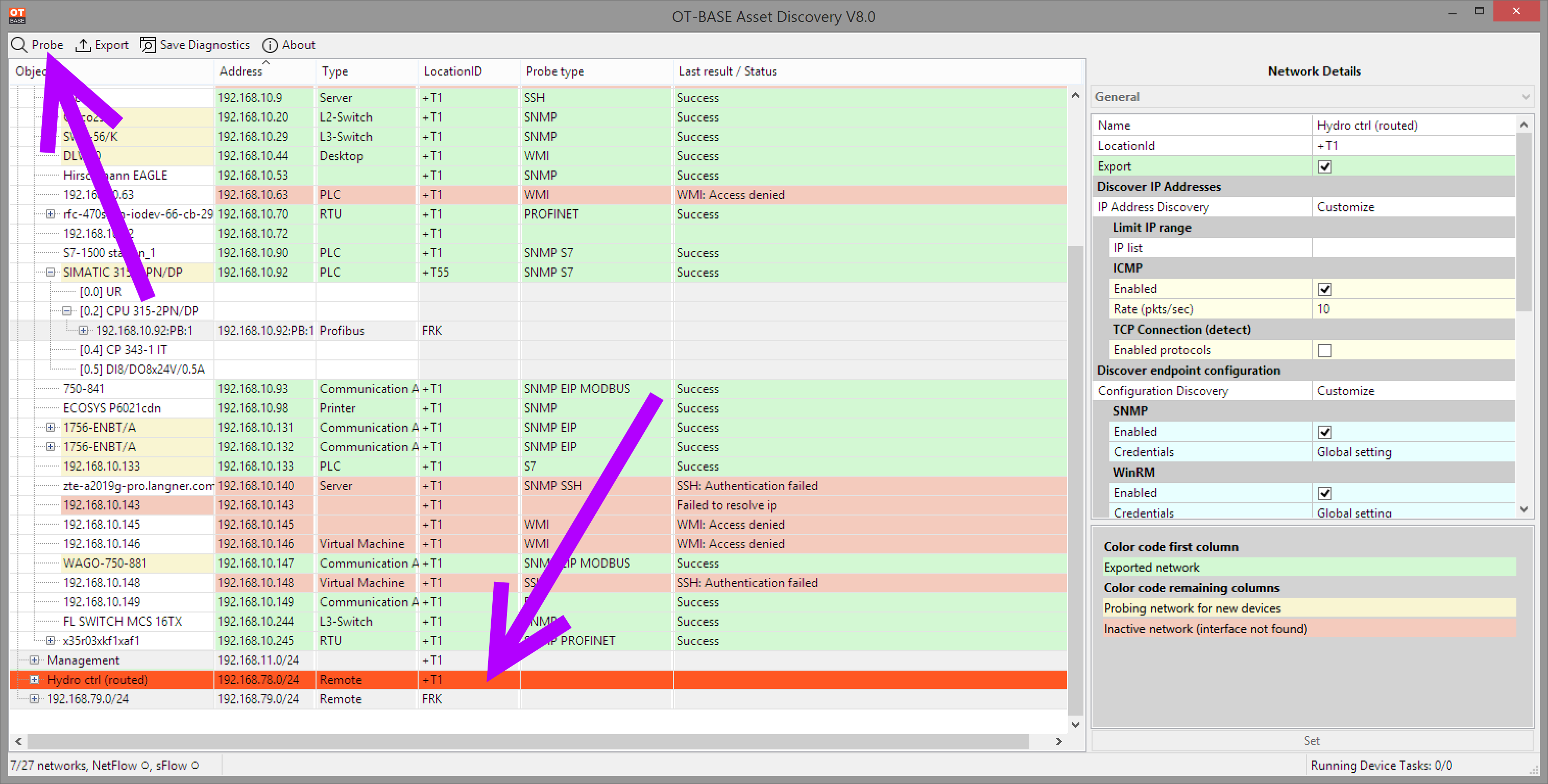

If you only want to probe a single network, select the desired network and right-click on the entry to open the context menu.
Probing individual devices

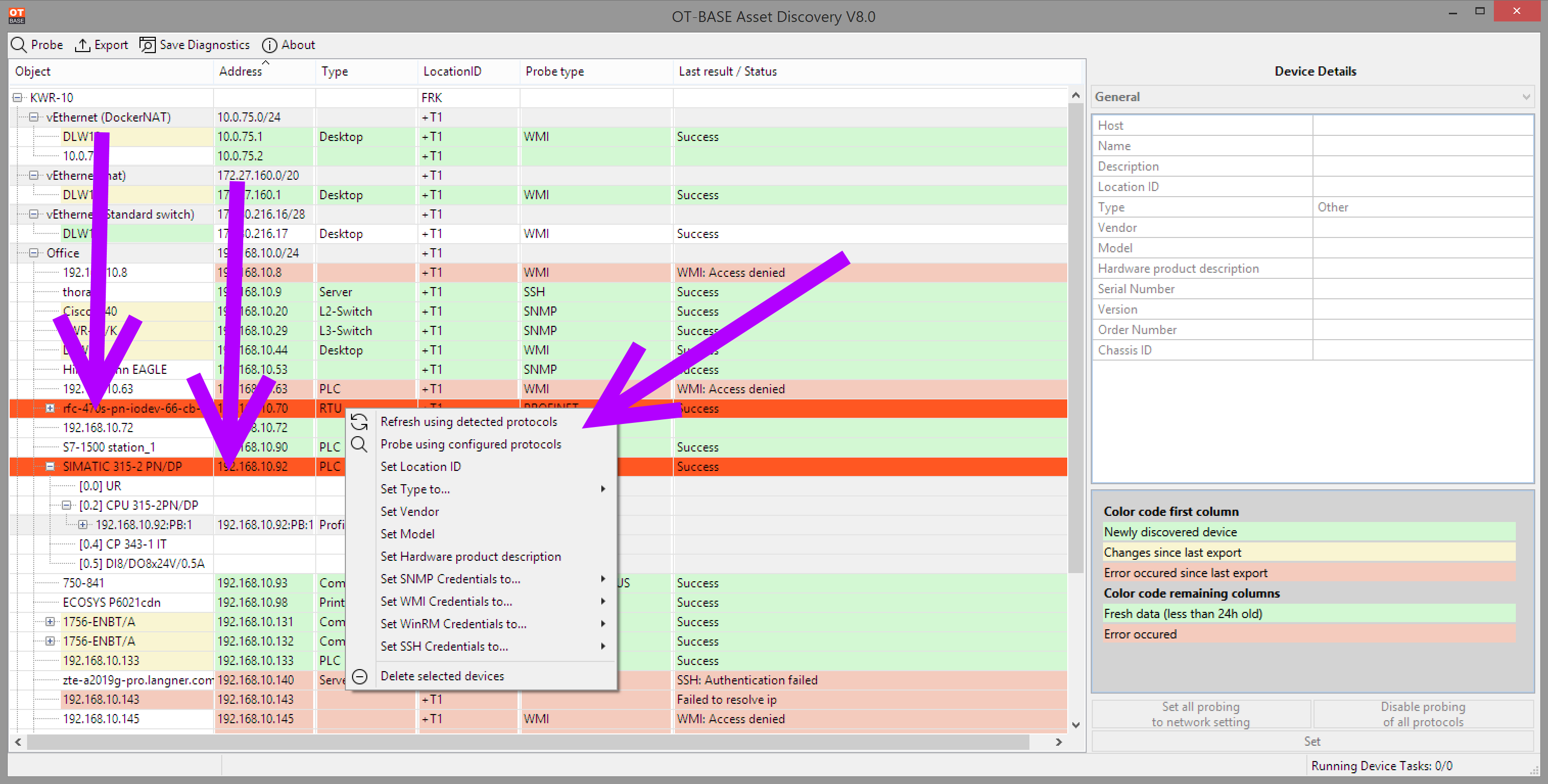

You can probe individual devices by pointing to a device in the device table and then launching the context menu with a right mouse click. This comes handy if you want to check an individual configuration adjustment for a device without having to re-probe the whole network.
The "refresh using detected protocols" action will immediately probe the selected device using those protocols that were successfully used in a previous probe of this device. The "probe using configured protocols" will immediately probe the selected device using the configured protocols.
