Location based network topology diagrams

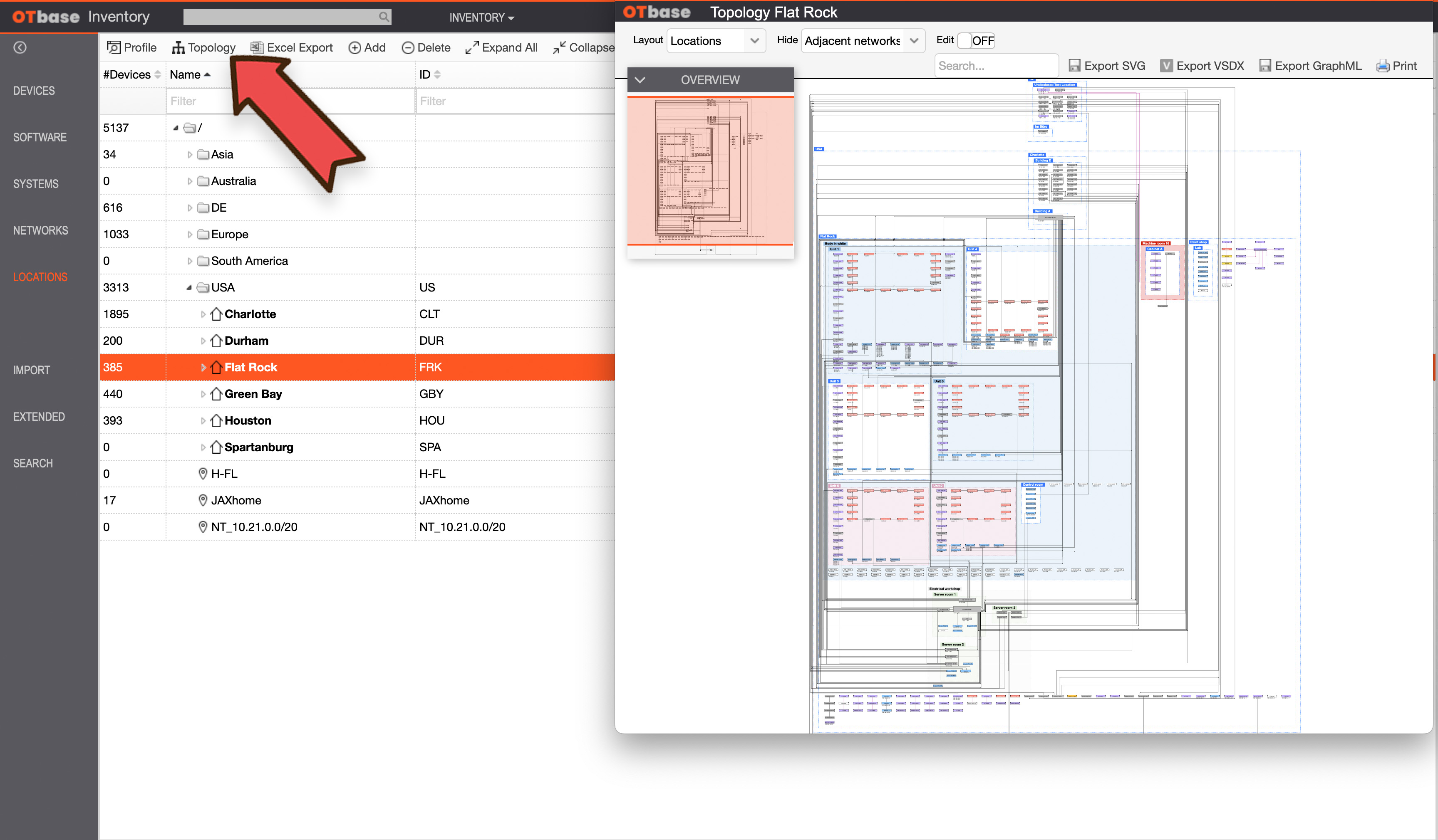

For any given location you can view a network topology diagram by selecting the location with left click and then clicking the Topology button.

This generates an automatic network topology, in a new window, for all devices at the selected location. Devices will be grouped in rectangles that represent the sub-locations for the selected location.

Note: Network diagrams are computed on the fly. This means that if you select a location with a lot of devices, it may take a couple of minutes for the diagram to generate.

Color coding your network topology

Location based topology diagrams can be enhanced by assigning location groups to your locations and sub-locations. A location group can be associated with a unique color code, and that color code will be used in the topology diagram.

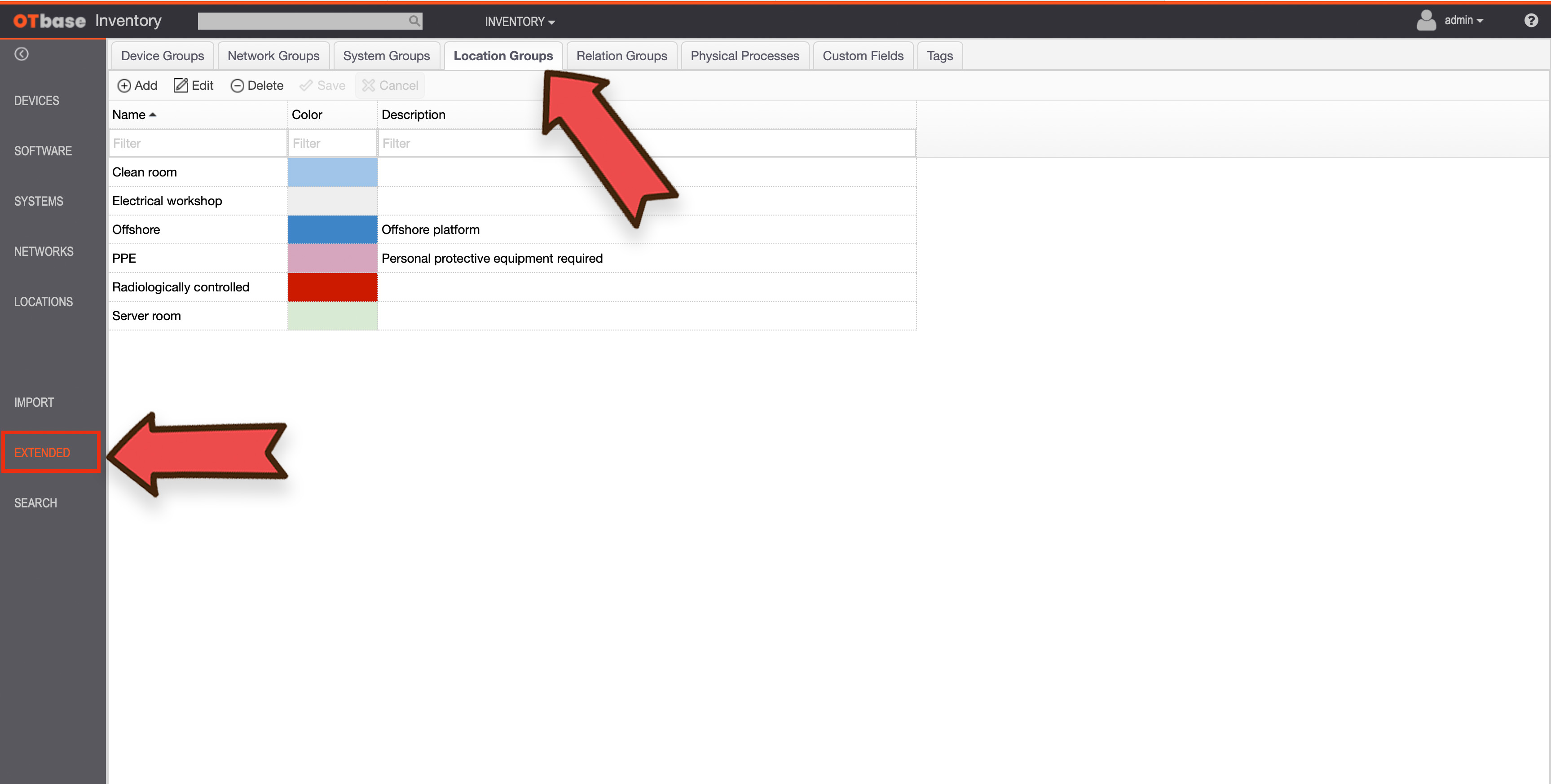

In order to define location groups, go to INVENTORY/EXTENDED and select "Location Groups". By clicking on "Add", you can add your location groups along with a color code and a description.
